How The Gopak Ultralight Staging System Works

The Ultralight Staging System crafted by Gopak in our Kent factory, is the ideal solution to deliver the performance that you have always wanted.

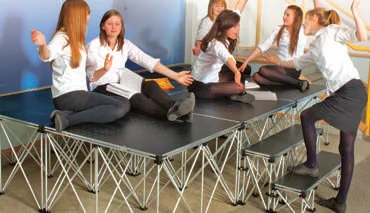

This innovative folding modular staging system provides an extremely safe, lightweight, easy to assemble, quick to dismantle solution, for performances. Being lightweight, the components are easy to transport and are incredibly robust and durable. It is this innovative combination that makes Ultralight Staging ideal for a variety of purposes, including school productions, events, conferences, choirs, gigs and concerts.

The Ultralight Staging system combines lightweight aluminium risers that concertina out similarly to a pop-up tent. Opening up a stage riser from it’s closed position is a simple one-man operation. The stage deck is attached to the stage riser by simply using the Allen Key fixings, located at each corner of the stage deck. It is a really simple product to assemble and a whole stage can be easily set up by one person, although we do recommend a two-person operation when moving and assembling our large 2m x 1m stage deck and risers.

To join decks and risers of equal height, all you need to do is link the decks and secure them with the cleverly designed locking cleat system, thus creating an extremely robust and solid structure. When joining multi-level decks and risers, our simple-to-connect riser clamps will hold your stage securely together.

The stage decks and risers are supplied in a variety of shapes and sizes and have been designed to fit together to create the perfect platform for your performance or presentation. We offer a wide choice of finishes, safety features and DDA-compliant solutions. Take a look at our range of pre-determined packages to assist with your decision-making. Optional extras include valance (stage skirting), safety rails, chair stop plates and storage trolleys.

Ultralight is the only lightweight staging system in the UK to have achieved GS TUV accreditation DIN 15921:2015-09 for load bearing, stability, design and structure.

As an assembled staging platform Ultralight has been tested to and achieved a uniform distribution load of 1000kg per m² and a point load test of 180kg.

When you buy Ultralight Staging, you can be assured that you are buying a quality product that will prove to be a valuable investment and asset to your organisation. It is this reliability combined with innovation that makes Ultralight ideal for a range of purposes across an array of sectors.

No of persons required: Just one, though we do recommend a two-person operation when putting together the 2m x 1m decks and risers.

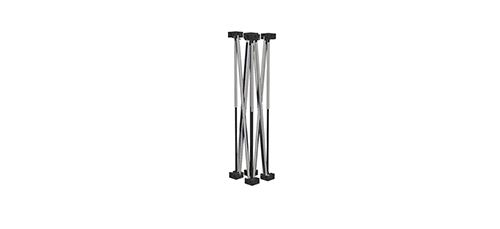

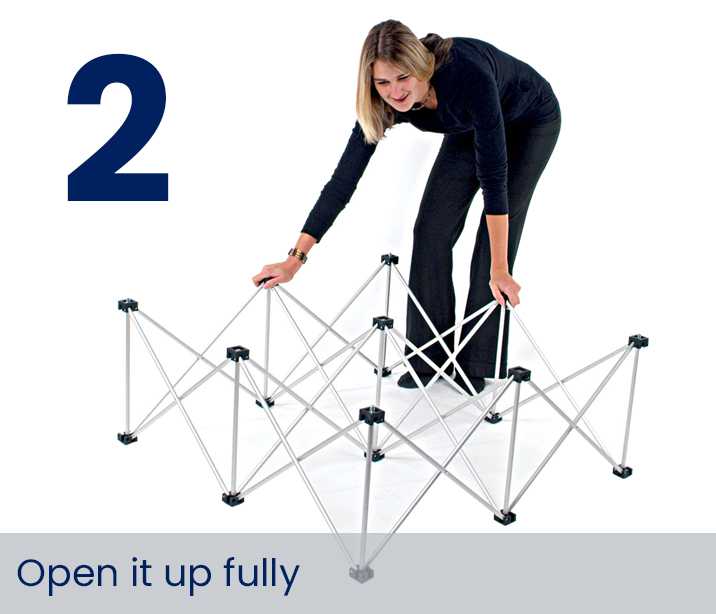

• Risers are folded for storage. To open for use, pull the middle sections apart, place them on the floor and push down so all the base of the riser is level

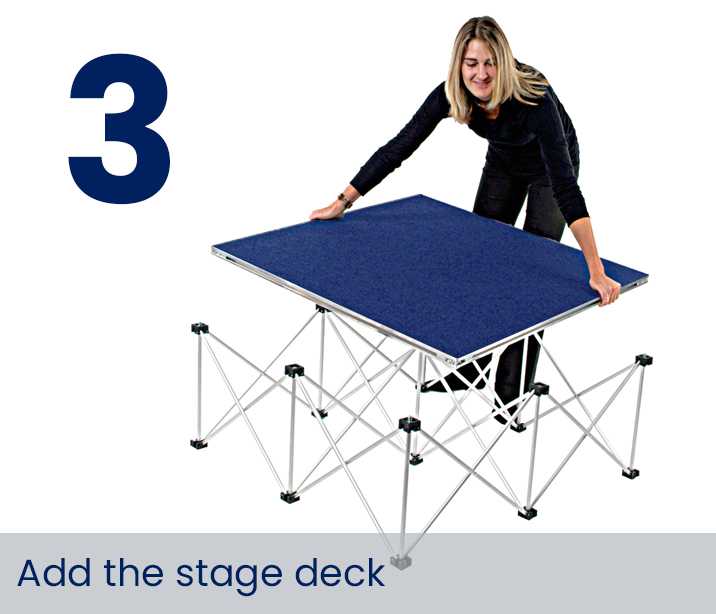

• Place the deck on top of the riser ensuring the holes in each corner of the stage deck and the corner screws on the risers are coupled

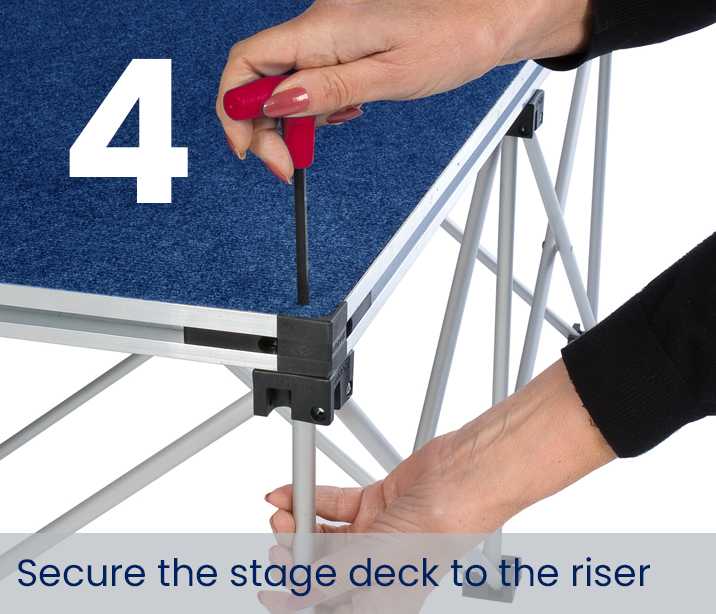

• Secure the deck to the riser by tightening the Allen Key fixing located at each corner using the Allen key provided
• Alternatively, desks can be secured to the riser by twisting the riser tube on each corner
• Repeat until you have your desired stage size and place the decks and risers together

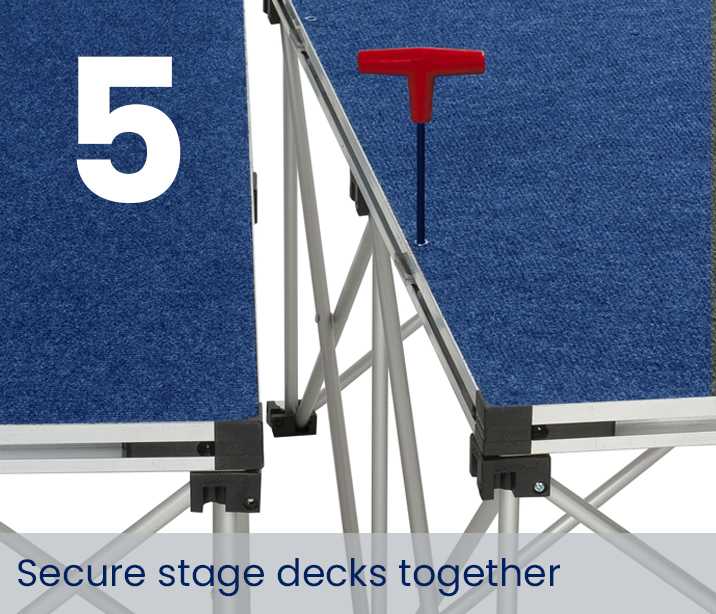

• Join stage decks and risers of equal height together using the locking cleats located on the leading edge of two sides of each stage deck. Align the two decks (and risers) so that they are flush with each other. Tighten the locking cleats using the Allen key provided with the stage. This will secure the stage decks together, so before you start to secure any decks, locate the cleats and ensure you are joining the correct sides together (don’t have cleats on facing edges of adjoining decks).

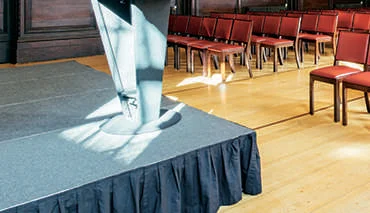

• If you are using the Ultralight Valance, simply add this to the edge of the stage by clipping the valance clips into the side extrusion of the stage deck.
• Anti-slip plugs can be added to each riser bottom block to prevent the stage from slipping on uneven floors.
• When using your stage outdoors or on uneven surfaces, Ultralight Riser Levellers can be used to help bridge the gaps that may be present and create a firmer footing for your stage.
• Please ensure that your stage is covered in inclement weather. Ultralight staging is not waterproof and will be damaged if it becomes wet. We recommend that you do not leave your stage outdoors.

Ultralight Staging is lightweight yet durable and can withstand intensive use for a range of different purposes. Your staging does not require special care, but we would advise that you carefully store away the various staging components when not in use. This will help to avoid accidental damage and keep your components clean and in working order. By looking after your staging correctly, it will continue to provide service for many years to come.
